Professional CNC Grinding Services
FARWARDER has sufficient technical advantages in CNC grinding. We have 10 CNC grinding equipment with surface roughness Ra≤0.04μm and form and position tolerance control of ±0.002mm, which meets the standards of ultra-precision components. The maximum machining size of our equipment is 1200×800mm, and the minimum machining size is 0.02mm micro parts. Whether it is cemented carbide, ceramics, titanium alloy, hardened steel, or brittle materials such as glass and granite, we can machining them.
FARWARDER provides free trial grinding results and supports single-piece trial production or small-batch customized CNC grinding machininging. We respond online 24 hours a day. If you have products that need CNC grinding, please contact us.
Product by Features
FARWARDER’s CNC grinding technology is very advanced, it can perfectly adapt to the precise machininging of workpieces of various shapes. Whether it is cylindrical, conical, flat, or with complex shapes, as well as rings, inner holes, and end faces, FARWARDER’s CNC grinding can provide efficient and accurate solutions. FARWARDER’s CNC grinding products are widely used in aerospace, mold manufacturing, automobile manufacturing, medica,l and other industries, such as bearings, gears, cams, etc.

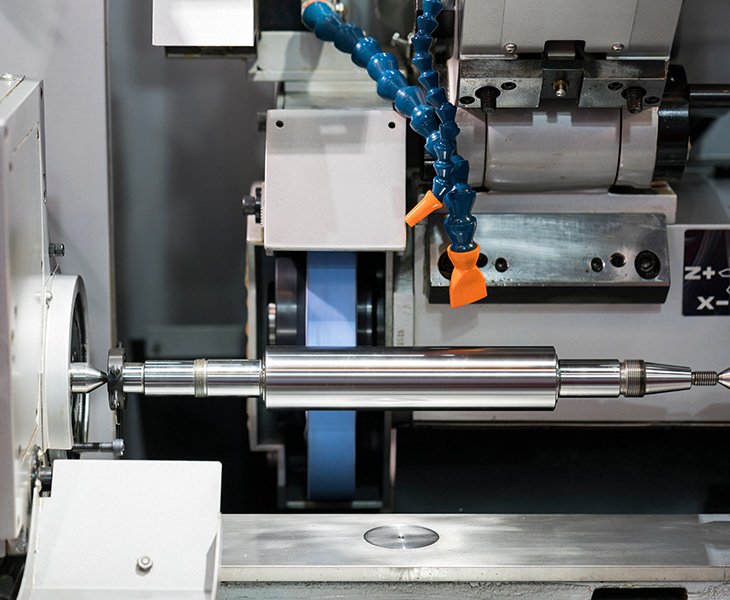

High-precision Equipment, A Full Range of Equipment
The equipment is old, the types are few, and it is impossible to provide various types of grinding machininges? FARWARDER has CNC surface grinders, CNC centerless grinders, CNC internal and external cylindrical grinders, CNC vertical universal grinders, CNC coordinate grinders, and CNC forming grinders, which can meet your machining needs for various products at one time.

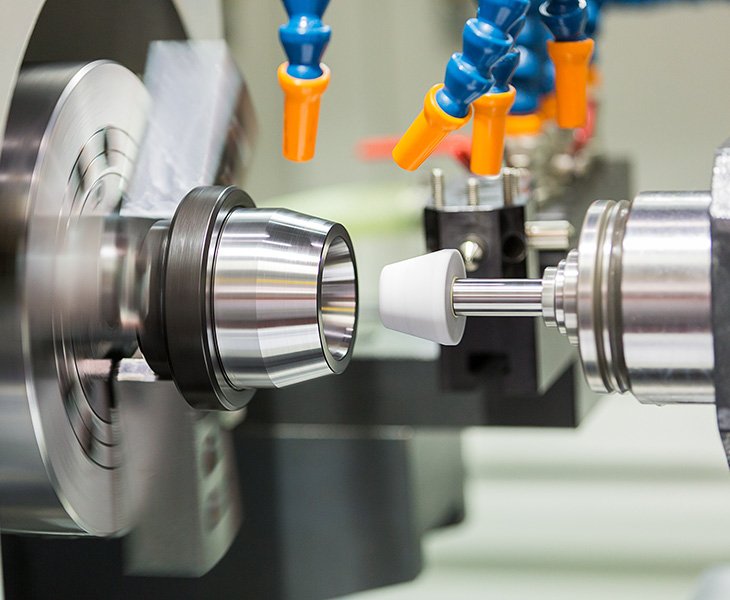

Accepts Orders of 1 Piece and Delivers Quickly
FARWARDER supports orders of 1 piece and promises that no additional fees will be charged for fixture design, testing, etc. If your order is urgent, we will also give priority to arranging an order for you to ensure the delivery time of your product.

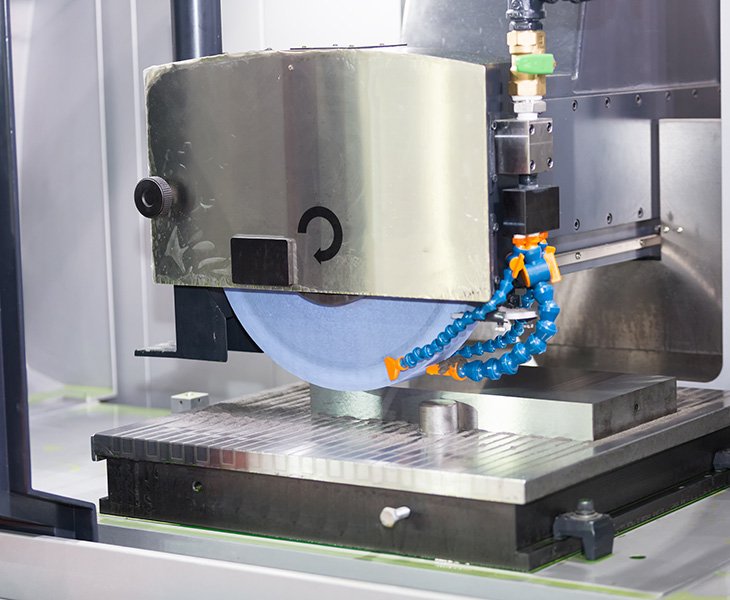

CNC Grinding Requires the Selection of Appropriate Grinding Wheels
The Cnc grinding machining is greatly affected by the grinding wheel. Do you want to optimize the machining flow, select the appropriate equipment and grinding wheel, and solve the problem of non-parallel parts or rough surfaces? We provide you with some reference solutions, hoping to be helpful to you. The specific use needs to be combined with feed rate, binder, etc., which requires rich experience. You can contact us.
CNC grinding has high precision and meets the machining requirements of high-precision parts (such as precision molds and semiconductor components). It is suitable for fields with strict tolerance requirements such as automotive engine parts and aerospace fasteners. It has complex geometric machining capabilities and supports precision grinding of complex curved surfaces (such as turbine blades and medical device joint surfaces). It can machining high-hardness materials with special grinding wheels. CNC grinding can achieve a mirror finish of Ra 0.01~0.1μm (such as Mirror Grinding), which is suitable for optical components and precision measuring tools.
You can try to reduce the grinding wheel linear speed (hard alloy recommended ≤25m/s), use high-pressure cooling (pressure ≥5MPa), check the machine tool reverse clearance (needed ≤0.003mm), and increase the number of light grinding (2~3 times of zero feed).
You can try the combined machining: coarse grinding (240#) → semi-fine grinding (600#) → fine grinding (1200# diamond grinding wheel).
